METAL LINEAR SYSTEM
Leading Manufacturer and Supplier from Delhi, our product range includes Metal Linear System such as 150F Decorative Ceiling, 84R Linear Ceiling System, 84C/ 184C Linear Ceiling System 150C/ 300C Linear Ceiling System and 200F Linear Ceiling Systems.

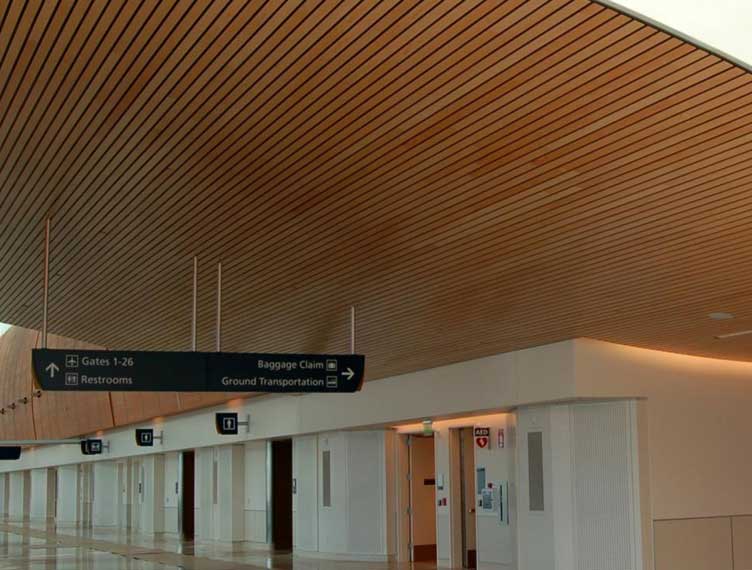

1. 150F DECORATIVE CEILING
150F LINEAR CEILING SYSTEMS Hi-STEEL 150F ceiling system comprises of 150 mm X 17 mm. Panels are fixed on the roll formed out of metal coils galvanized coil coated steel or aluminium alloy. carriers 34.5 mm wide X 48 mm deep out of 0.7/0.9 mm Aluminium or 0.5/0.6 mm galvanised steel with cutouts to hold the panels in module of 150 mm at maximum 1.5 mm c/c without insulation and at maximum 1.2 mm c/c with insulation. Carriers are suspended from the roof or truss by 4 mm dia galvanized steel wire rod hanger with special height adjustment suspension clip at max. 1.2 mm c/c. Hangers are fixed to the roof by ceiling brackets. Panels are available in lengths up to maximum 6 m to suit site dimensions. Edge profiles or wall angles are 24 mm X 24 mm and match the colour of the panel.
Aluminium - Alloy AA5050, AA3105 or AA1050 is used to make the panels and carriers. Thickness is 0.5 mm for panels and 0.7/0.9 mm for carriers. Mild Steel - Galvanized with 180 / 120 gsm Zinc coating. Thickness is 0.5/0.6 mm for panels and 0.6/0.5 mm for carriers. Finish of the panels: Panels are available in plain and perforation 2.5 mm 2.2mm 1.5 mm and 1.8 mm.
2. 84R LINEAR CEILING SYSTEM
84R ceiling system comprises of 84 mm x 16 mm panels without flush profile (for 100 mm module only) roll formed out of metal coils. Panels are fixed on to roll formed carriers 32 mm wide x 39 mm deep made out of 0.9/0.7 mm Aluminium or 0.5 mm galvanised steel sheet with cutouts to hold the panels in module of 100 mm at maximum 1.7 mm c/c without insulation and at maximum 1.5 mm c/c with insulation. Carriers are suspended from the roof or truss by 4 mm dia. galvanized steel wire rod hanger with special height adjustment suspension clip at max. 1.3 mm c/c. Hangers are fixed to the roof by ceiling bracket. Panels are available in max. Lengths up to maximum 6 m to suit site dimensions.. Edge profiles or wall angles are 24 mm X 24 mm X 0.5 mm thick and match the colour of the panel. Flush profile can be use in between 2 panels to fill gap of 16mm.
Metal used for construction of both panels and grid
Aluminium Alloy AA5050, AA3105 or AA1050 is used to make the panels carrier. Thickness is 0.5 mm for panels and 0.9/0.7 mm for carriers. Panel are made of Galvanised steel with 180/120 gsm Zinc coating and 20 microns polyester paint coil coating sheets. Panels can be available in 50 microns polyester powder coating galvanized steel with 120/180 gsm Zinc coating or in aluminium alloy in different colours. Finish of the panels : Panels are available in plain and perforation of 2.5 mm 2.2mm 1.5 mm and 1.8 mm.
3.84C/184C LINEAR CEILING SYSTEM
4C/184 C ceiling system comprises of 84/184 mm x 12.5 mm panels with 23.9 mm flange roll formed out of metal coils galvanized coil coated steel or aluminium alloy. Panels are fixed on to roll formed carriers 32 mm wide x 39 mm deep out of 0.7/0.9 mm Aluminium or 0.5 mm galvanized steel sheet with cutouts to hold the panels in module of 100/200 mm at maximum 1.6 mm c/c without insulation and at maximum 1.5 mm c/c with insulation. Carriers are suspended from the roof or truss by 4 mm dia. Galvanized steel wire rod hanger with special height adjustment suspension clip at max 1.3 mm c/c. Hangers are fixed to the roof by ceiling bracket. Panels are available in lengths up to maximum 6 mm to suit site dimensions. Edge profiles or wall angles are 24 mm X 24 mm X 0.5 mm thick and match the colour of the panel.
Metal used for construction of both panels and carrier:
Aluminium Alloy AA5050, AA3105 or AA1050 is used to make the panels and carrier. Thickness is 0.5 mm for panels and 0.9/0.7 mm for carriers.
Panel are made of Galvanised steel with 180/120 gsm Zinc coating and 20 microns polyester paint coil coating sheets. Panels can be available in 50 microns polyester powder coating galvanized steel with 120/180 gsm Zinc coating or in aluminium alloy in different colours.
Finish of the panels : Panels are available in plain and perforation of 2.5 mm 2.2mm 1.5 mm and 1.8 mm.
4. 200F LINEAR CEILING SYSTEMS
200F ceiling system comprises of 200 mm X 17 mm. Panels are fixed on the roll formed out of metal coils galvanized coil coated steel or aluminium alloy. Carriers 34.5 mm wide X 48 mm deep out of 0.9 mm Aluminium or 0.5 mm galvanised steel with cutouts to hold the panels in module of 200 mm at maximum 1.7 mm c/c without insulation and at maximum 1.5 mm c/c with insulation. Carriers are suspended from the roof or truss by 4 mm dia galvanized steel wire rod hanger with special height adjustment suspension clip at max 1.2 mm c/c. Hangers are fixed to the roof by ceiling brackets. Panels are available in lengths up to maximum 6 mm to suit site dimensions.
Edge profiles or wall angles are 24 mm X 24 mm and match the colour of the panel. Metal used for construction of both panels and carriers : Aluminium – Alloy AA5050, AA3105 or AA1050 is used to make the panels and carriers. Thickness is 0.6 mm for panels and 0.9 mm for carriers. Mild Steel – Galvanized with 180/120 gsm Zinc coating. Thickness is 0.5 mm for panels and 0.5 mm for carriers. Finish of the panels: Panels are available in plain and perforation of 2.5 mm 2.2mm 1.5 mm and 1.8 mm.
